Impact Crusher Parts

Introduction

Impact crusher parts are the replaceable components designed to withstand the intense impact and abrasive forces of the crushing process. They protect the crusher's main structure while performing the work of breaking down materials such as rock, concrete, and asphalt. Unlike compression crushers, impact crushers use high-speed impact energy to shatter feed material, making their wear parts critical to both performance and operating cost .

The primary wearing parts in an impact crusher include the blow bars (hammers)—which directly strike the material—and the impact plates (aprons/liners)—against which material is shattered. Additional parts like side liners, rotor components, and various protective plates ensure the integrity of the entire machine . Available in high-chrome alloys, manganese steel, and martensitic materials, modern impact crusher parts are engineered for specific applications to maximise wear life and minimise cost per ton .

Working Principle

Impact crushers operate by striking feed material with rapidly rotating hammers and directing it against stationary impact walls:

• High-Speed Rotor: The rotor, equipped with blow bars (hammers), rotates at high speed, driven by a motor or diesel engine .
• Primary Impact: Material entering the crusher chamber is struck by the blow bars, shattering it instantly .
• Secondary Impact: The material is then thrown against the impact plates (aprons) mounted on the crusher frame, breaking it further .
• Recirculation & Discharge: The material bounces back into the blow bar zone for repeated crushing. This cycle continues until particles are small enough to exit through the gap between the rotor and the lowest impact plate .
• There are two main types of impact crushers: Horizontal Shaft Impact (HSI) crushers, which are the most common for primary and secondary crushing, and Vertical Shaft Impact (VSI) crushers, used for tertiary crushing and producing manufactured sand .

Applications

Impact crusher parts are critical across industries requiring high-reduction, cubical-shaped product from medium-hard and abrasive materials:

• Aggregates & Quarrying:Crushing limestone, granite, basalt, and gravel into cubical aggregate.
• Construction & Recycling:Processing reinforced concrete, asphalt, cinder blocks, and demolition waste.
• Mining:Crushing ore and coal in secondary and tertiary stages
• Cement & Chemical:Size reduction for raw materials and industrial minerals.

Features

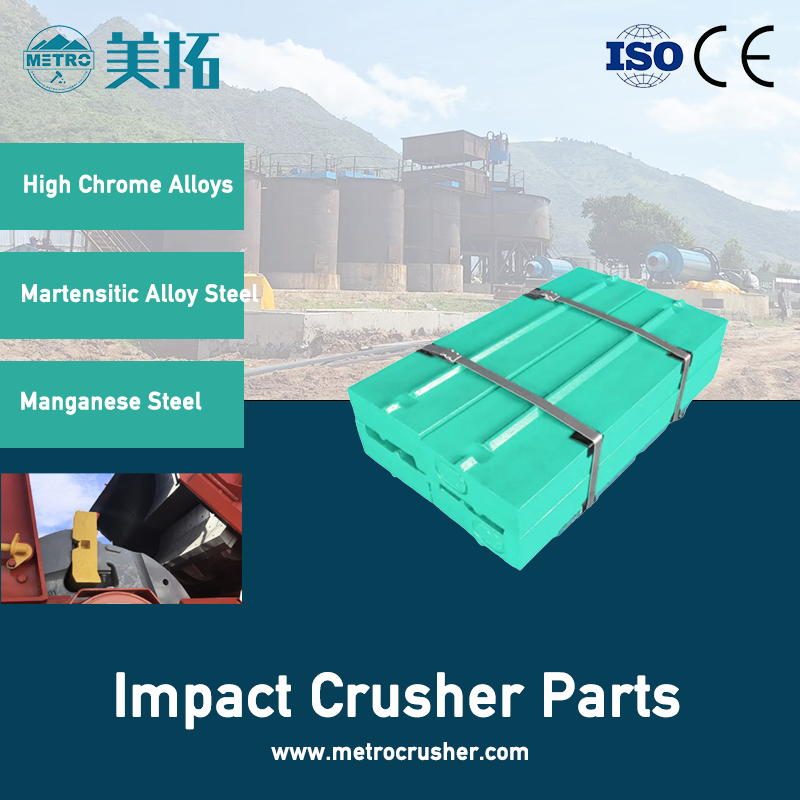

Blow Bars (Hammers)

The blow bar is the primary and most expensive wearing part of an impact crusher. It is mounted on the rotor and directly impacts the feed material .

• High Chrome Alloys (e.g., Cr26, Cr30)-High hardness, excellent abrasion resistance-Natural stone crushing (granite, basalt, limestone).
• Martensitic Alloy Steel-Tougher, better impact resistance-Recycling applications with reinforced concrete
• Manganese Steel (Mn13, Mn18)-Work-hardening; good for moderate abrasion-Softer rocks and concrete.
• Metal Matrix Composite (MMC)-Superior wear life for extreme conditions-High-impact, high-abrasion applications.

Impact Plates (Aprons / Liners)

These are the stationary plates mounted inside the crusher frame against which material is shattered. Their shape and material greatly influence crushing efficiency and wear life . They can be configured for different applications:

• Monoblock castings with or without replaceable wear strips
• Welded constructions with bolt-on wear elements.
• Thicker options (e.g., 30 mm Hardox plates) for highly abrasive natural stone to extend wear life.

Side Liners (Frame Liners)

Used on the inside of the impact crusher body, these plates protect the crusher frame from material wear.

Rotor Assembly

This is the main rotating component holding the blow bars. It is a robust, welded structure that must be balanced precisely . Common rotor configurations include 3-bar and 4-bar designs.

Ancillary & Protective Parts

To ensure complete protection and reliable operation, these additional parts are critical:

• Rotor Protection Plates, Shield the rotor body from abrasion and impact.
• Belt Guard Plate, Protects the discharge belt from heavy wear, especially in natural stone applications.
• Radiator Blast Guard, Stainless-steel mesh to protect radiator from airborne fines (sandblasting effect).

Material Selection Guide

The right material choice depends on the abrasiveness and hardness of the feed material.

• KmTBCr4Mo-Good general-purpose high-chrome-Moderate abrasion, medium-impact crushing.
• KmTBCr9Ni5Si2-Good toughness with abrasion resistance-Concrete recycling and asphalt.
• KmTBCr15Mo-Excellent abrasion resistance-Natural stone and hard rock.
• KmTBCr26-Superior wear resistance-Highly abrasive granite, basalt, and hard ores.

Performance Specifications

• Key Components:Blow Bars, Impact Plates, Side Liners, Rotor, Protective Plates.
• Material Options:High Chrome (Cr15 to Cr30), Manganese Steel (Mn13 to Mn18), Martensitic Alloy Steel, MMC.
• Rotor Configurations:3-bar or 4-bar designs.
• Applications:HSI (primary, secondary, recycling); VSI (tertiary, manufactured sand).
• Compatibility:Metso, Sandvik, Terex, Kleemann, Hazemag, Rubble Master, and all major brands.

Why Choose Our Impact Crusher Parts?

Our impact crusher wearing parts combine advanced metallurgy, precision engineering, and rigorous quality control to deliver superior wear life, reliable fit, and optimised crushing performance.

Key differentiators:

• Premium Quality Materials: Wide range of alloys including high-chrome, manganese, and martensitic options to match your feed material .
• Precision Fit: Engineered to OEM specifications for guaranteed safety, reliability, and compatibility across all major brands .
• Customised Solutions: Blow bar profiles and impact plate configurations tailored to specific application requirements.
• Comprehensive Support: Full aftermarket parts availability and technical guidance for maximizing wear life .
• Enhanced Safety: Proactive wear monitoring and proper maintenance tools to reduce downtime and improve safety .

Contact our process engineering team today to specify the right impact crusher parts for your application.
