GZD Series Feeder is mainly used for uniform, quantitative and automatic controlled under-silo feeding of bulk materials.

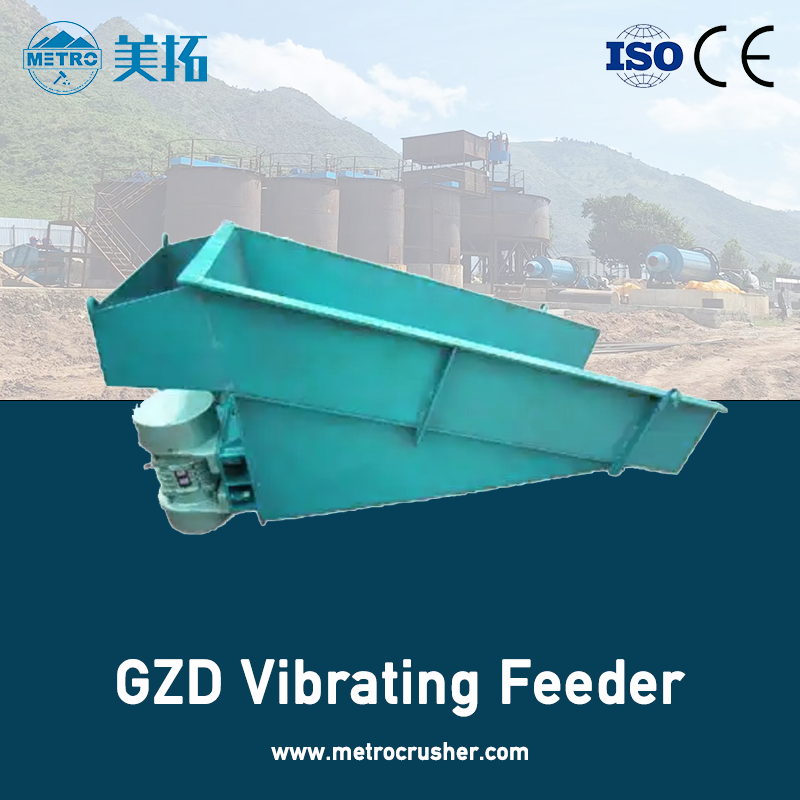

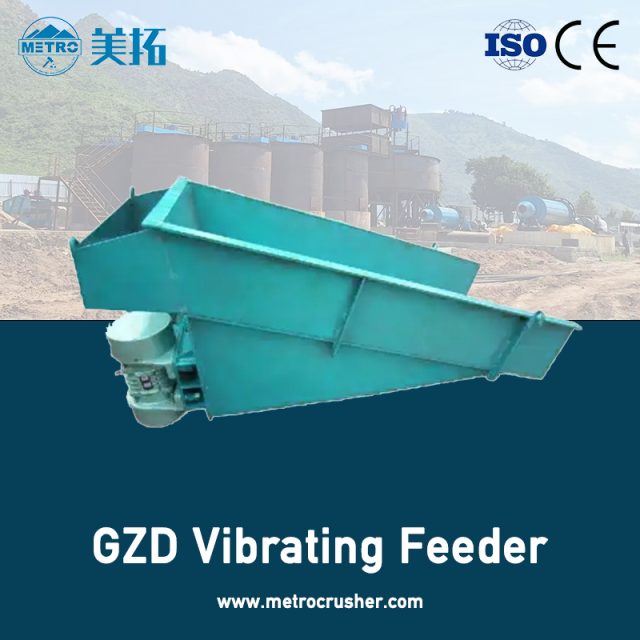

GZD Series Vibrating Feeder is applicable to feed large raw materials evenly to the crusher. Massive, granular and powdery material enters into the crushing machine from the storage bunker.
In crushing plant, Vibrating Feeder feeds materials timely into the crusher, andseparates the material firstly. lt's widely used in the crushing and screening plant, in the field ofmetallurgy, coal mine, mineral separation building material, chemical industry, grinding, etc. It can reach the purpose of continuous feeding and primary screening.
| MODEL | CHUTE SIZE | FEEDING SIZE(MM) | CAPACITY(TPH) | POWER(KW) | ROTATION(R/MIN) | DIMENSION(MM) |
| GZD2010 | 2000×1000 | 300 | 50-150 | 2x1.1-6P | 960 | 2050x2052x1155 |
| GZD2015 | 2000×1500 | 300 | 80-250 | 2x1.5-6P | 960 | 2150x2025x1155 |
| GZD2518 | 2500×1800 | 300 | 120-350 | 2x2.2-6P | 960 | 2650x2325x1300 |
| GZD300×90 | 3000×900 | 500 | 40-160 | 2x2.2-8P | 960 | 3307x1430x1455 |
| GZD450×150 | 4000×1500 | 500 | 100-250 | 2x7.5-8P | 960 | 4740x2520x1670 |
| GZD500×180 | 5000×1800 | 700 | 280-500 | 2x5.5-8P | 960 | 5240x2820x1670 |
