Steel Balls

Introduction

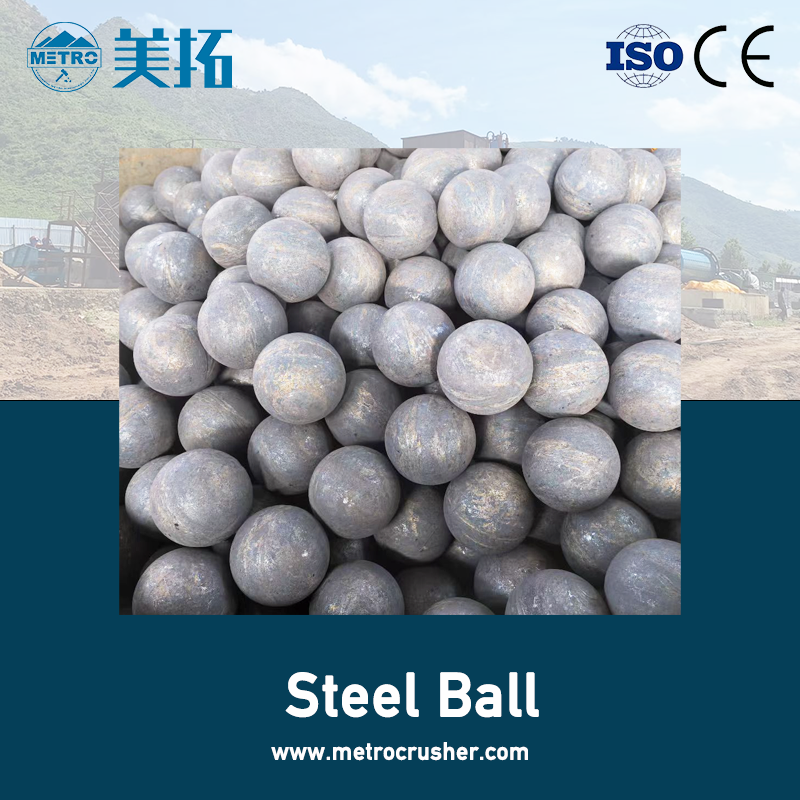

Ball mill steel balls are the indispensable grinding media used in ball mill equipment to crush, grind, and pulverize materials. These spherical consumables generate grinding and peeling effects through collision and friction between the steel balls themselves and between the balls and the material being processed. As the "workhorse" of mineral processing and material grinding operations, steel balls directly influence the grinding efficiency of the ball mill and the overall productivity of the entire production line.

Manufacturing Types

Steel balls are primarily manufactured through two distinct processes:

• Cast Steel Balls: Produced by pouring molten steel into spherical molds, these are further classified into low-chromium, medium-chromium, and high-chromium casting balls. Higher chromium content generally correlates with better wear resistance.
• Forged Steel Balls: Created by forging red-hot steel, these offer superior impact toughness and are less prone to deformation. Common grades include low-carbon alloy steel, medium-carbon alloy steel, high-manganese steel, and rare earth chromium-molybdenum alloy steel.

Key Features

Hardness and Wear Resistance
Hardness is the most critical performance indicator for steel balls. Practice demonstrates that steel balls with hardness above HRC 60 have a service life more than double that of balls with HRC 40-50. High-quality forged steel balls typically achieve surface hardness of HRC 55-65, with excellent through-hardening characteristics.

Chemical Composition
Superior steel balls are engineered with precise chemical formulations. Typical compositions include 0.90%-1.00% carbon for optimal strength and wear resistance, combined with silicon (0.30%-1.00%), manganese (0.80%-1.20%), and chromium (0.40%-0.70%) to enhance hardenability and toughness. Premium grades like B2 and B3 feature specialized alloy designs for demanding applications.

Breakage Resistance
Quality steel balls exhibit a breakage rate below 1%, with impact values exceeding 12 J/cm² and drop ball test performance of 20,000+ cycles, ensuring reliable operation in high-impact environments.

Size Range
Steel balls are available in diameters from 20mm to 150mm, with typical size classifications: small balls (40mm-60mm), medium balls (80mm), and large balls (100mm-120mm). Super-large ball mills may require balls up to 130mm-150mm diameter.

Applications

Ball mill steel balls are widely utilized across numerous industrial sectors:

• Mining and Metallurgy: Processing gold, copper, iron, and other metal ores through comminution to liberate valuable minerals
• Cement Production: Fine grinding of clinker and raw materials
• Power Generation: Pulverizing coal for combustion in thermal power plants and coal water slurry processing
• Chemical Industry: Grinding raw materials and catalysts
• Building Materials: Processing of aerated concrete, fly ash, slag, and calcium carbonate
• Flue Gas Desulfurization: Grinding limestone absorbents
• Ceramics and Glass: Raw material size reduction
• Emerging Applications: Processing of lithium battery minerals and specialty chemicals
