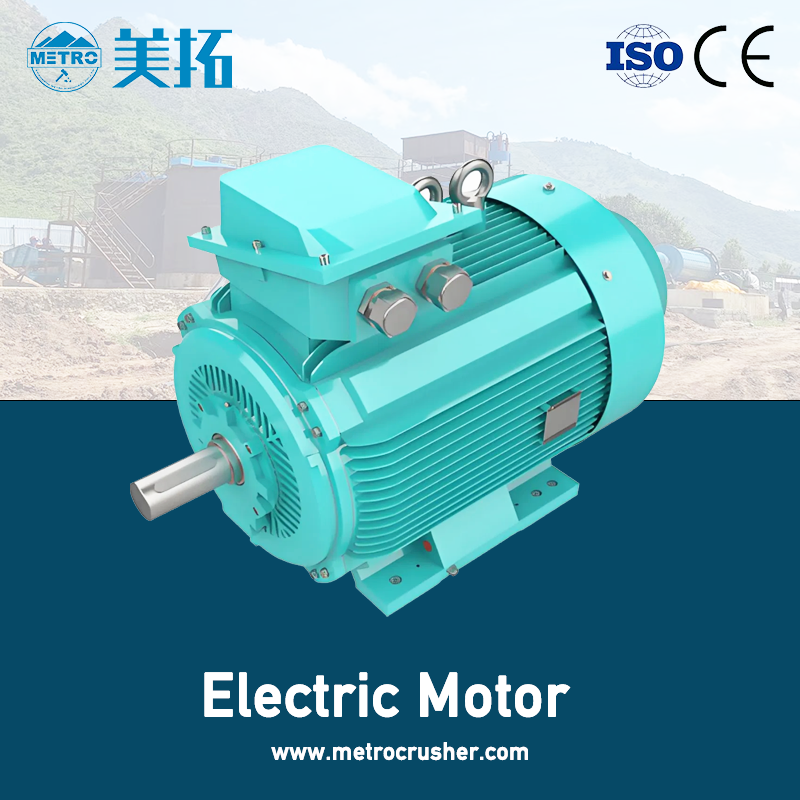

YB2 series explosion-proof three-phase asynchronous motor is a new kind of product developed on the basis of YB and YB2 series motors adopts the latest technology in the world such as electromagnetic structure, craft and materials etc.
It has the advantages of high efficiency, energy saving, large temperature rise margin, long life, good performance, low noise, advanced flameproof structure, high reliability, convenient use and maintenance .
YB2 explosion-proof motor is used as fixed equipment for underground coal mine (non-mining work). It also used as drive device that applied to the place which composed of explosive mixture(combined air with factory lIB, T1-T4 temperature group flammable gas/steam.
It is mainly used in coal mine, petroleum natural, petrochemical and chemical industries. In addition, it has been widely used in textile, metallurgy, city gas, transportation, grain and oil processing, paper making, medicine and other departments. As the main power equipment, explosion-proof motor is usually used to drive pumps, fans, compressors, conveyors and other transmission machinery.
Operating conditions
Rated voltage:230v/400v,380v,415v,440v 660v 575v,690v 380/660v.
Rated frequency:50hz 60hz
Operation type:S1,S2,S3
Less than 1000 meters above elevation.
The variation of temperatue to season shall be kept within -20-40 degrees.
Highest average R.H.in the enviroment;
(For motors in the mine well,when the aberage temperature is 25 degrees) not exceeding 95%
(For motors in factories,when the monthly aberage temperateu is not exceeding 25 degrees) the averge humidity should not be more tthan 90%
Explosion -proot mark
The explosion proof marks of this series are EXDI EXDII AT4,EXDII BT4.
Structure of proteciton is ip54,ip55,ip65
Cooling type:IC411
Insulation class F,H.
Motor casing material:cast iron,aluminum
