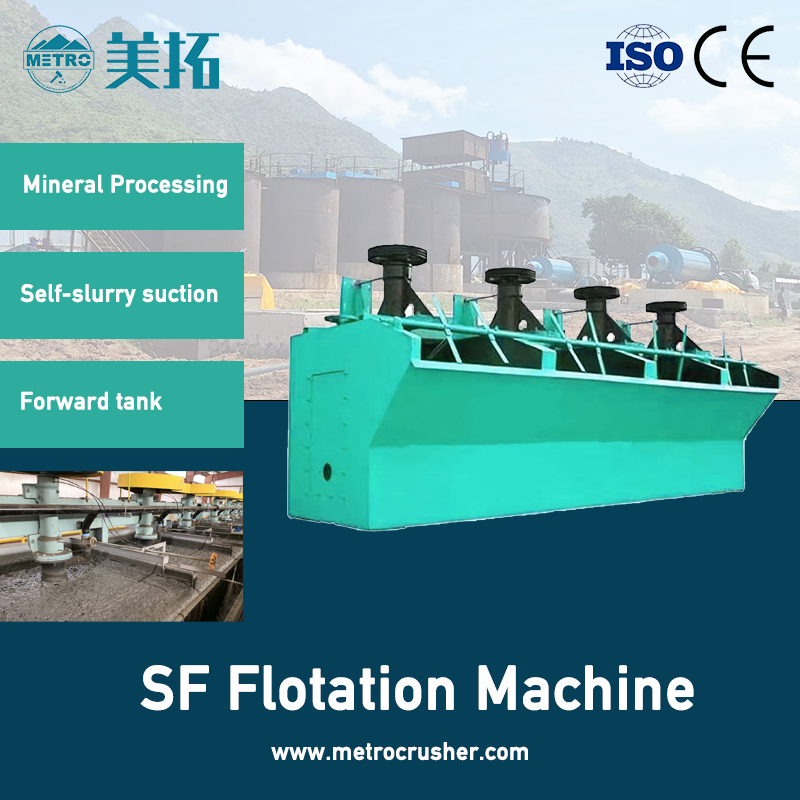

IntroductionSF Flotation Machine is a mechanical agitation, self-aerating flotation cell widely used in mineral processing. It is designed with a unique impeller featuring backward-inclined upper and lower blades, which enables it to simultaneously self-suck air and ore pulp, forming a closed flotation circuit without auxiliary equipment. It is recognized as an upgrade of the older XJK type, offering improved flotation performance
Applications
- Non-ferrous metals-Separating copper, lead, zinc, nickel, molybdenum, and other sulfide ores .
- Ferrous metals-Processing iron ore and other ferrous minerals .
- Precious metals-Recovering gold and other noble metals .
- Non-metallic minerals-Separating non-metallic minerals and industrial chemicals .
- Roughing, scavenging, and cleaning-Suitable for various flotation stages, especially coarse and scavenging operations in medium to large flotation plants
Features & Advantages
- Self-slurry suction & self-air suction-Can self-suck air and pulp, eliminating the need for auxiliary equipment, simplifying circuit configuration, and enabling horizontal layout .
- Double circulation of slurry-Impeller with backward-inclined blades ensures upper and lower double circulation, which effectively suspends coarse particles and reduces sand settling .
- High air suction capacity-Unique impeller structure creates strong negative pressure for efficient air intake and bubble dispersion .
- Low energy consumption-Optimized design reduces power usage; lower peripheral speed of impeller contributes to energy savings .
- Long service life of wear parts-Lower impeller circumferential speed and larger gap between impeller and cover plate reduce wear, prolonging the life of impeller and stator .
- Better flotation index-Compared to XJK type, it can improve concentrate grade by 4-6%, recovery rate by 8%, and production by 12% .
- Forward tank design-Features small dead zone and fast foam movement, beneficial for coarse particle flotation .
- Easy level control-Self-control device for pulp level simplifies operation and adjustment .
- Flexible circuit configuration-Often combined with JJF flotation machine to form a joint unit for optimized performance.
| Model |
Volume(m) |
Capacity (m³/min) |
Dia Of Impeller (mm) |
Impeller Revolution(r/min) |
PowerFor Agitation(kW) |
Motor |
Power For Scraper(kW) |
Tank Weight(kg) |
| SF-0.37 |
0.37 |
0.2-0.4 |
300 |
352-442 |
1.5 |
Y90L-4 |
0.55 |
470 |
| SF-0.7 |
0.7 |
0.3-1.0 |
350 |
336 |
3 |
Y132S-6 |
1.1 |
970 |
| SF-1.2 |
1.2 |
0.6-1.2 |
450 |
312 |
5.5 |
Y132M-6 |
1.1 |
1400 |
| SF-2.8 |
2.8 |
1.5-3.5 |
550 |
280 |
11 |
Y160L-6 |
1.5 |
2120 |
| SF-4 |
4 |
2.0-4 |
650 |
235 |
15 |
Y180L-6 |
1.5 |
2600 |
| SF-8 |
8 |
4.0-8 |
760 |
191 |
30 |
Y250M-8 |
1.5 |
4292 |
| SF-16 |
16 |
5.0-16 |
850 |
169-193 |
45 |
Y280M-8 |
1.5 |
7415 |
| SF-20 |
20 |
5.0-20 |
730 |
186 |
30×2 |
Y250M-8 |
1.5 |
9823 |
