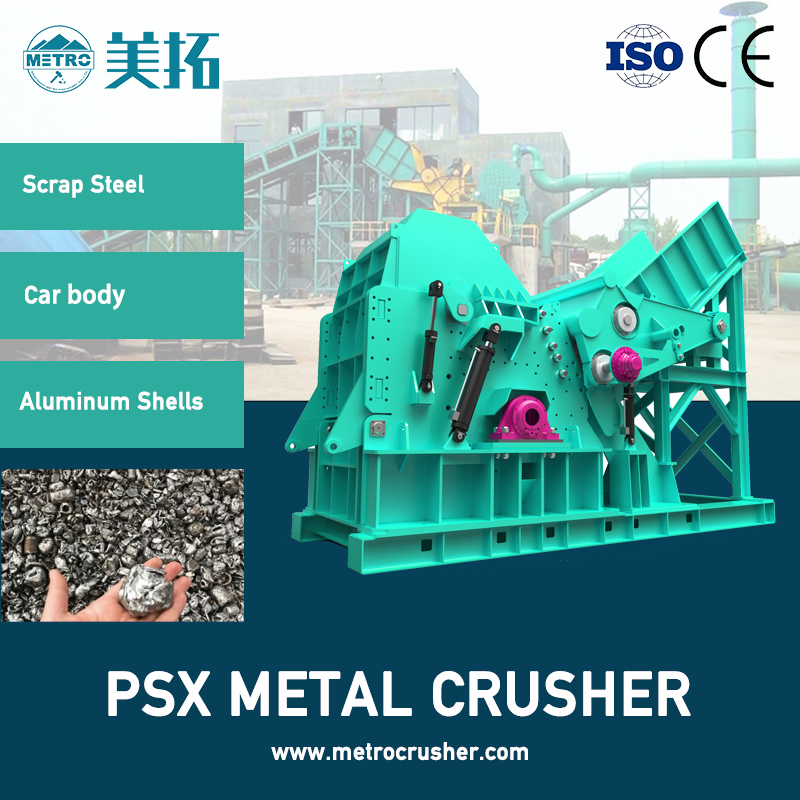

PSX Metal Crusher

Introduction

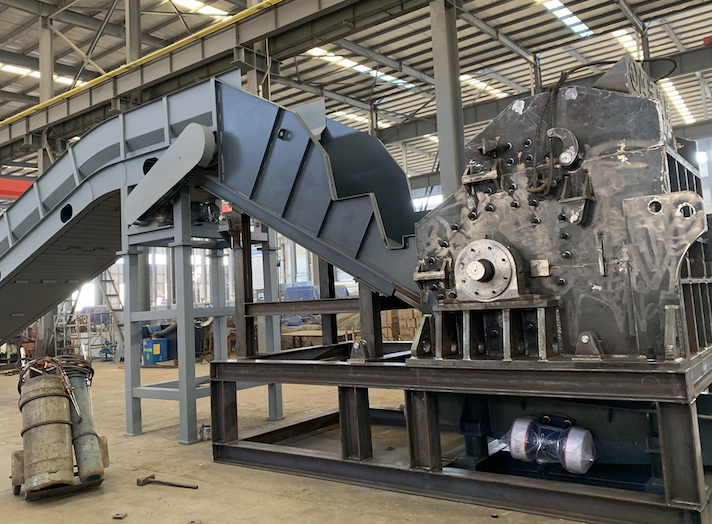

PSX Series Scrap Steel Crushing Line is a high-performance recycling system designed to process light scrap steel into high-quality furnace charge for steel mills. By learning and absorbing advanced foreign technology, this equipment fills the domestic gap in crushing production for scrap home appliances, automobile shells, and light industrial waste.

PSX crusher operates on a high-speed, high-torque hammering principle: the rotor-mounted hammers continuously strike the scrap material inside the crushing chamber, tearing and squeezing it into specified sizes. This process removes coatings, increases bulk density, prevents explosions when charged into electric furnaces, and improves dissolution rates—fully meeting steel mills' requirements for "fine material feeding".

Applications

• Automotive Scrap:Whole or flattened car bodies (tires, fuel tanks, engines, and gearboxes removed).
• Household Appliances:Old washing machines, refrigerators, air conditioners, etc. (motors, compressors, and shafts removed).
• Tinplate & Light Scrap:Tinplate sheets, steel drums, paint buckets, color steel tiles
• Other Scrap:Bicycles, motorcycle frames, empty cans (liquids and paint removed), aluminum cans, light steel with thickness <6mm.

Materials Not Recommended for Processing:

Thick wire cable (>20mm, >7.5m length).
Steel plate >20mm thickness or >25mm thickness with large dimensions.
Alloy steel, reinforcing steel bar >30mm radius, steel ingots, billets.
Structural materials with section >10mm.

Key Features

Heavy-Duty Construction: Large inertia, fully enclosed rotating body with heavy-duty bearings; cast high manganese (ZGMn18Cr2Mo) liners for outstanding durability.
Easy Maintenance: Hydraulic opening system for upper casing allows wide access; hammer/pin removal device for quick replacement; lifting device for safe rotor access.
High Automation: Computer/PLC monitored system ensures safe, efficient operation with reduced labor costs; remote diagnosis and 24/7 after-sales support.
Environmental Protection: Complete supporting facilities for shock absorption, noise reduction, and dust removal (cyclone + bag dust removers) to minimize secondary pollution.
Smart Protection: Uncrushable outlet system with hydraulic cylinders minimizes internal damage; overload protection (mechanical/hydraulic/electrical).
Separation System: Magnetic separation, vibrating screen, and different material discharging systems for high-purity crushed steel output.

After-Sales Support

Warranty: 12 months standard; lifelong maintenance service.
Spare Parts: One set of spare parts, tool box, and operation manual included with purchase.
Global Service: Guaranteed response within 3 days; engineers available for overseas installation and service.
Remote Support: 24/7 remote diagnosis and technical assistance.



For detailed quotations, customized configurations, or specific application inquiries, please contact the manufacturer directly with your material type and required output capacity.
