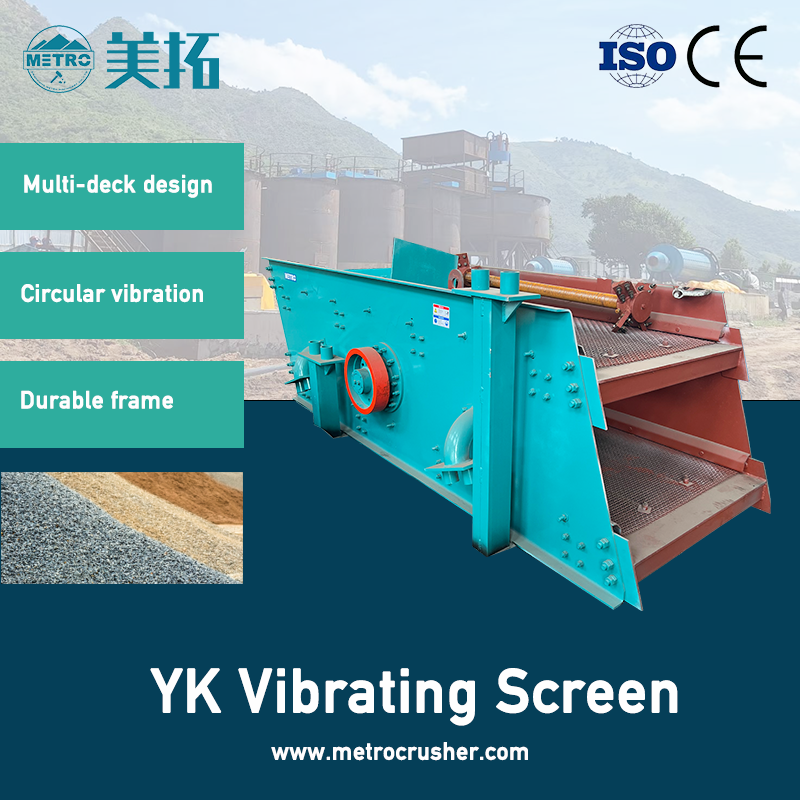

IntroductionYK Vibrating Screen is a circular motion screening machine widely used in mining, aggregate production, and construction. It consists of a screen box with multiple decks (typically 2–4 layers), a vibrating exciter (eccentric shaft or block), and a heavy-duty frame. The exciter generates a circular vibration trajectory, which causes material to stratify and move across the screen surface, allowing fine particles to pass through the mesh openings while oversize material is conveyed forward and discharged.
Applications
- Mining-Screening iron ore, copper ore, gold ore, coal, limestone, and other minerals
- Aggregate production-Classifying crushed stone, gravel, sand, and recycled aggregates into graded fractions
- Construction & Road building-Producing aggregates for concrete, asphalt, and road base materials
- Quarrying-Screening materials after primary/secondary crushing (jaw, cone, or impact crushers)
- Metallurgy-Separating ores and sintered products
- Chemical & Industrial-Screening gypsum, phosphate, barite, and other bulk materials
- Recycling-Separating construction and demolition waste into reusable fractions
Features & Advantages
- Circular vibration trajectory-Provides efficient stratification and prevents plugging-ideal for wet and sticky materials.
- Multi-deck design (2–4 layers):Produces 3–5 different product sizes in one machine-saves space and cost.
- Adjustable amplitude & frequency-Optimizes screening performance for different materials and moisture contents.
- Heavy-duty screen mesh-Available in woven wire, punched plate, or polyurethane-long service life and easy replacement.
- Easy mesh replacement-Quick-release tensioning system reduces downtime to minutes.
- Simple structure-Few moving parts; reliable operation with low maintenance requirements.
- Grease-lubricated bearings-Sealed for life-no oil circulation system needed; reduces maintenance complexity.
- High screening efficiency-Up to 85-95% for properly sized materials-ensures accurate separation.
- Wide model range-From small lab units to large industrial screens (1–10+ decks, 0.5–5+ m width).
- Durable frame-Heavy-duty welded steel construction with bolted or riveted joints.
Key Benefits
- Accurate classification-Produces consistent, high-quality aggregates meeting construction standards.
- High capacity-Handles large volumes in a compact footprint.
- Versatile-Works with dry, wet, and sticky materials.
- Low operating cost-Energy-efficient motors and long-lasting screen media.
- Protects downstream equipment-Removes fines and oversize before they enter crushers or conveyors.
Main Components
- Screen box-Main body holding all decks and mesh; made of welded steel.
- Vibrating exciter-Eccentric shaft or unbalanced blocks that generate circular motion.
- Screen deck (layers)-Horizontal or slightly inclined layers of screen mesh (2–4 typically).
- Screen mesh-Woven wire, punched plate, or polyurethane panels with specified openings.
- Tensioning system-Springs or bolts that secure mesh and allow quick replacement.
- Vibration dampers-Rubber or coil springs that isolate vibration from the supporting structure.
- Motor-Electric motor (typically 5.5–45 kW) driving the exciter via V-belts.
- Feed box-Distributes material evenly across the top deck.
- Discharge chutes-Directs each product fraction to separate conveyors or stockpiles.
Why Buy From METRO?Trusted Expert GuidanceBacked by years of industry experience and trusted by leading contractors, our specialists guide you to the right equipment globally. Avoid costly mistakes and source with confidence.
Support & ReliabilityFrom inspections and logistics to accessing skilled technicians, we provide comprehensive support to ensure your equipment performs reliably, minimizing costly downtime.
Financing That Fits Your BusinessGet your projects moving faster. We work with you and our network of lenders to provide clear, com petitive financing options tailored to your business needs.
Nationwide Delivery & TrainingNo matter where your project is located, we handle the logistics from start to finish. Our team coordinates fast, secure delivery and on-site training to get your equipment running quickly and safely.
Frequently Asked Questions
How to ensure product quality?
We've successfully obtained international quality system certification. Our workshop has conducted field certification, you're welcome to drop by our workshop. We wholeheartedly welcome and encourage you to appoint independent third-party inspectors to assess our products prior to their dispatch.
How long is the delivery time?
Normally 15 to 30 days.
What training and support are there?
Ordinary equipment is equipped with operation videos for daily maintenance, and large equipment can be installed in the destination country. All equipment is equipped with detailed instructions.
What kind of transportation and packaging?
According to the different sizes of different models, containers, frame containers, roll-on/roll-off ships or bulk cargo can be selected for transportation. They will be fixed, and if placed on the deck, there will be tarpaulins and anti-fall nets.
|
Model
|
Power(kw)
|
Mesh Dimension(mm)
|
Capacity(tph)
|
Overall dimensions
(mm)
|
Weight(t)
|
|
2YK-1230
|
5.5
|
1200*3000
|
13-78
|
4010×2250×2660
|
2.3
|
|
3YK-1230
|
7.5
|
1200*3000
|
15-80
|
4010×2250×3140
|
3
|
|
2YK-1545
|
15
|
1500X4500
|
60-270
|
5072x3147x3776
|
4.9
|
|
3YK-1545
|
15
|
1500X4500
|
47-275
|
5011x3986x2653
|
6
|
|
4YK-1545
|
18.5
|
1500X4500
|
60-250
|
4800x2947x4045
|
7
|
|
2YK-1860
|
22
|
1800X6000
|
63-586
|
5200x3400x3911
|
7.6
|
|
3YK-1860
|
22
|
1800X6000
|
51-496
|
6200x3326x3393
|
8.7
|
|
4YK-1860
|
30
|
1800X6000
|
32-310
|
5447x3417x4266
|
10.5
|
|
2YK-2160
|
30
|
2100X6000
|
390-560
|
6050x3735x4087
|
7.8
|
|
3YK-2160
|
30
|
2100X6000
|
390-560
|
6050x3934x4594
|
10.7
|
|
4YK-2160
|
45
|
2100X6000
|
66-720
|
6050x3966x5073
|
11.1
|
|
2YK-2460
|
30
|
2400X6000
|
450-650
|
6050x4035x4087
|
8
|
