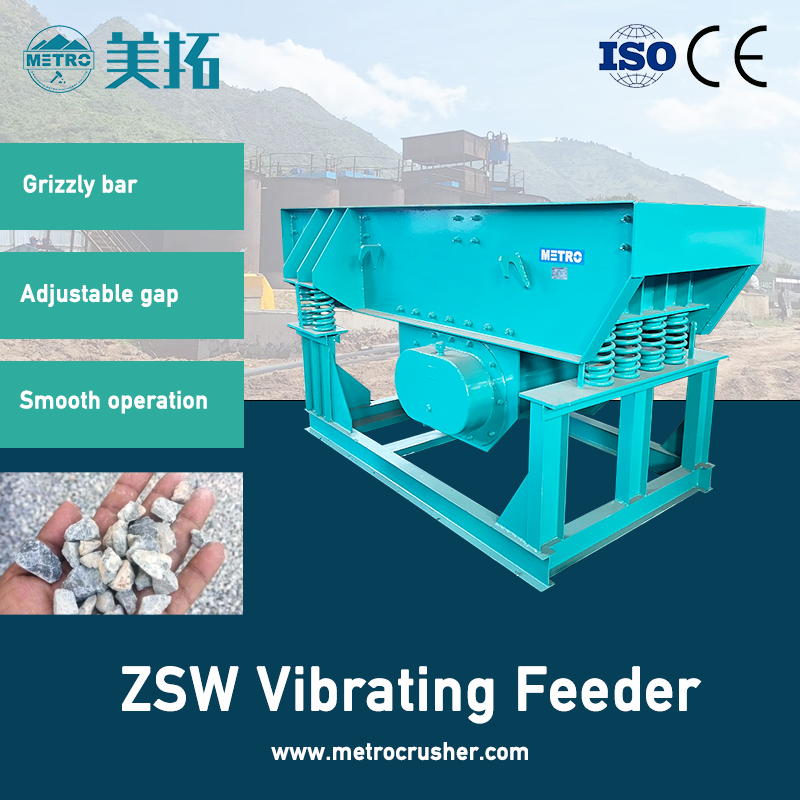

IntroductionZSW Vibrating Feeder is a heavy-duty feeding equipment used to transfer large-sized materials from a hopper or bin into a primary crusher (such as a PE Jaw Crusher). It features a dual function: feeding + pre-screening–fine materials pass through the grizzly bars, reducing the load on the crusher.
Applications
- Mining & Quarrying–Feeding jaw crushers, impact crushers, or hammer crushers.
- Aggregate production–Supplying consistent material flow to crushing lines.
- Recycling–Feeding construction waste into crushers.
- Metallurgy & Cement–Transporting ores, limestone, and clinker.
Features & Advantages
- Grizzly bar: design Removes fine particles before crushing, increases crusher efficiency.
- Adjustable gap: Grizzly bar spacing can be changed to control pre‑screening size.
- Heavy‑duty construction: Handles large feed sizes (up to 800 mm) and hard materials
- Eccentric shaft + gearbox:Provides strong, stable vibration; no belt slip or overheating.
- Stepless speed adjustment: Allows continuous control of feeding rate via inverter (optional)
- Low maintenance: Simple structure with few wear parts.
- Smooth operation: Balanced design reduces vibration transmitted to supporting structure.
| Model |
Chute size (mm) |
Max Feeding (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight(t) |
Dimensions (mm) |
| GZD-250×75 |
2500×750 |
300 |
50-80 |
1.5×2 |
1.3 |
2580×1430×600 |
| GZD-300×90 |
3000×930 |
450 |
80-100 |
3.0×2 |
3 |
3050×1430×1550 |
| GZD-370×100 |
3700×1050 |
500 |
100-150 |
3.7×2 |
3.7 |
3980×1878×866 |
| GZD-490×110 |
4900×1100 |
580 |
120-280 |
5.5×2 |
4 |
5200×1900×950 |
| GZD-500×120 |
5000×1200 |
600 |
200-400 |
5.5×2 |
5.2 |
5450×2000×900 |
| ZSW-380×96 |
3800×960 |
550 |
100-160 |
11 |
4.4 |
3882×1684×1340 |
| ZSW-490×110 |
4900×1100 |
630 |
120-280 |
15 |
5.4 |
4957×1841×1365 |
| ZSW-590×110 |
5900×1100 |
700 |
200-350 |
22 |
6.3 |
6000×2500×2150 |
| ZSW-600×1300 |
6000×1300 |
750 |
400-560 |
22 |
7.8 |
6082×2580×2083 |
Support & ReliabilityFrom inspections and logistics to accessing skilled technicians, we provide comprehensive support to ensure your equipment performs reliably, minimizing costly downtime.
Financing That Fits Your BusinessGet your projects moving faster. We work with you and our network of lenders to provide clear, com petitive financing options tailored to your business needs.
Nationwide Delivery & TrainingNo matter where your project is located, we handle the logistics from start to finish. Our team coordinates fast, secure delivery and on-site training to get your equipment running quickly and safely.
Frequently Asked Questions
How to ensure product quality?
We've successfully obtained international quality system certification. Our workshop has conducted field certification, you're welcome to drop by our workshop. We wholeheartedly welcome and encourage you to appoint independent third-party inspectors to assess our products prior to their dispatch.
How long is the delivery time?
Normally 15 to 30 days.
What training and support are there?
Ordinary equipment is equipped with operation videos for daily maintenance, and large equipment can be installed in the destination country. All equipment is equipped with detailed instructions.
What kind of transportation and packaging?
According to the different sizes of different models, containers, frame containers, roll-on/roll-off ships or bulk cargo can be selected for transportation. They will be fixed, and if placed on the deck, there will be tarpaulins and anti-fall nets.
